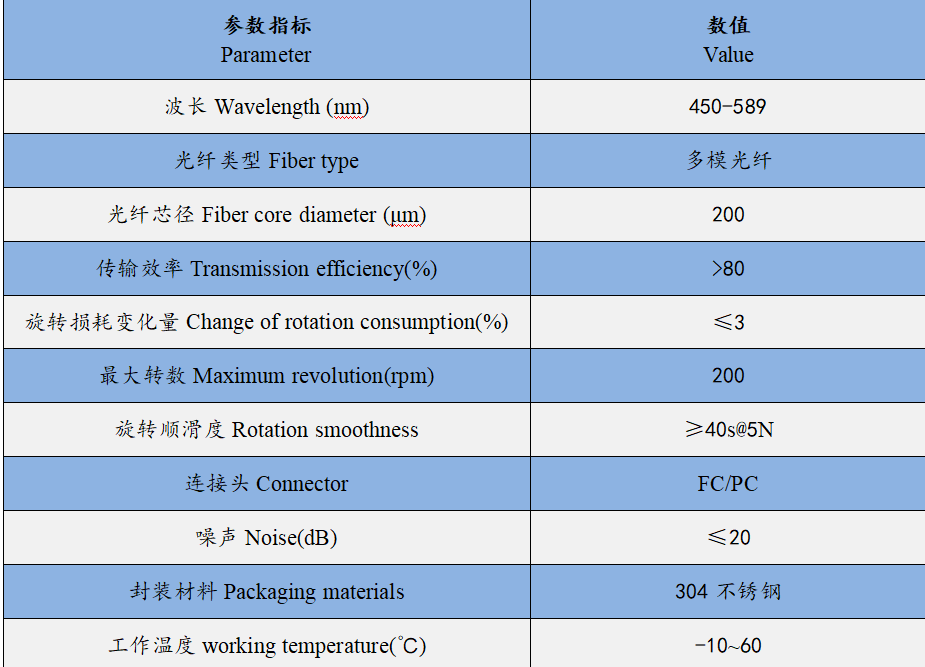

波长Wavelength(nm) | 450-589 |
光纤类型Fiber type | 多模光纤 |
光纤芯径Fiber core diameter(μm) | 200 |
传输效率Transmission efficiency(%) | >80 |
旋转耗损变化量Change of rotation consumption(%) | ≤3 |
最大转数Maximum revolution(rpm) | 200 |
旋转顺滑度Rotation smoothness | ≥40s@5N |
连接头Connector | FC/PC |
噪声Noise(dB) | ≤20 |
封装材料Packaging materials | 304不锈钢 |
工作温度working temperature(℃) | -10~60 |
